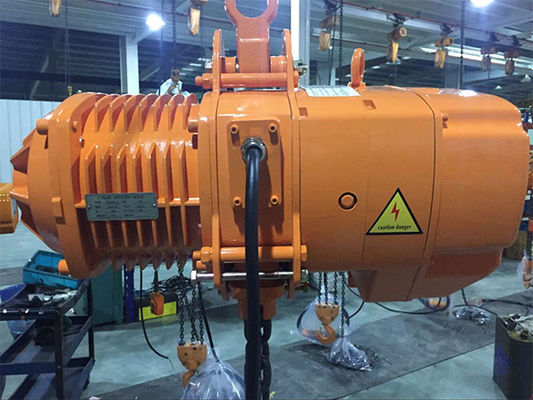

1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist

1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist

  • 1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist
  • 1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist
1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist
Product Details:
Place of Origin: Jiangsu , China
Brand Name: SEAGULL
Certification: CE
Model Number: Industrial Lifting Equipment Super Alloy Steel Chain Electrical Hoist
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: wooden box.
Delivery Time: 30 days after confirming the contract
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Warranty: One Year Condition: New
Quality Test: 100% 1.5times Tested One By One Before Packages Body Material: Alloy Steel
Standard: GS/CE Application: Warehouse, Building, Wharf, Farm, Ect.
Power Source: Electric Chain: G80
Body Shell: Light Aluminum Alloy
High Light:

electric chain block

,

electric chain fall

,

Motorized Electric Chain Hoist

SGW 1-Ton Single speed Motorized trolley chain hoist / electric chain hoist

Product Description
Motor: Work class F insulation.
Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30minof continuous duty work at least.
Gear: All the gearing process by CNC Digital lathe with heat treating
Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipationwith the rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate andelectroplate factroy
Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force. It allowsinstant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
Chain: FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .
Hook: Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
Support frame:The loading support frame consists of two steel plates which is extremely sturdy
Transformer:24/36V transformer device forbid unexpected accidents such as electric leakage.
Electromagnetic contactor:It can use safely under high frequency
Phase protect device: It wonn't work when error wiring connecting by the end user to keep safe
Control button: IP 54 protection on electric hoist for dust and water proof protection.36V control

1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist 0




1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist 1


 Techinal parameters

Model Rated Load(ton) Standard Lifting Height(m)

Lifting Speed
(m/min)

Power
(kw)

Rotation Speed
(r/min)

Phase

Voltage
(v)

Frequency
(hz)

Chain Falls Chain Specification Test Load (t)

Weight
(kg)

Weight added with 1m higer (kg)
SGW-00501SF 0.5 3 6.8 0.75 1440 3 200-440 50 1 φ6.3 0.625 47 0.81
SGW-01001SF 1 3 6.6 1.5 1440 4 200-441 50 1 φ7.1 1.25 61 1.1
SGW-01002SF 1 3 3.4 0.75 1440 5 200-442 50 2 φ6.3 1.25 52 1.62
SGW-01501SF 1.5 3 8.8 3 1440 6 200-443 50 1 φ10.0 1.875 108 2.3
SGW-02001SF 2 3 6.6 3 1440 7 200-444 50 1 φ10.0 2.5 115 2.3
SGW-02002SF 2 3 3.3 1.5 1440 8 200-445 50 2 φ7.1 2.5 73 2.2
SGW-02501SF 2.5 3 5.4 3 1440 9 200-446 50 1 φ11.2 3.125 116 2.8
SGW-03001SF 3 3 5.4 3 1440 10 200-447 50 1 φ11.2 3.75 122 2.8
SGW-03002SF 3 3 4.4 3 1440 11 200-448 50 2 φ10.0 3.75 131 4.7
SGW-05002SF 5 3 2.7 3 1440 12 200-449 50 2 φ11.2 6.25 151 5.6
SGW-10004SF 10 3 2.7 3 1440 13 200-450 50 4 φ11.2 12.5 300 8.4


Test
1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist 2


Packing
1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist 3

Certificate
1 Ton Electric Chain Hoist , Single Speed Motorized Trolley Hoist 4

See more :SEAGULL ELECTRIC HOIST SGW 1.pdf
