| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | HSZ-J |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 15,000pcs per month |
| Product Name: | Manual Chain Block | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 0.5t - 30t | Surface: | Painting, Chorme |
| Standard: | GS/CE | Type: | Electric |
| High Light: | hand chain hoist,3 ton manual chain hoist |
||

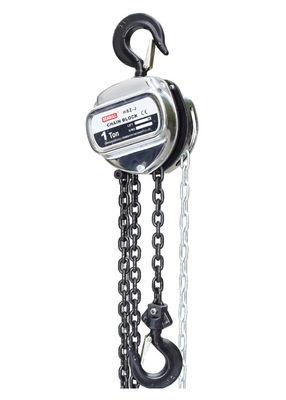

0.5T - 30T MANUAL CHAIN BLOCK
PRODUCT SUMMARY
SEAGULL manual chain hoist features steel-casting housing, Grade 80 chain and a compact design that's perfect for tight spaces. Black finish lift chain is rust resistant and durable, while zinc-plated pull chain resists rust. All-steel construction for durability and wear resistance.
DESCRIPTION
* Capacity from 0.5T to 30T.
* gear assembly to be efficient for operation.
* Drop forged hooks and hook holders to ensure superior quality and safety.
* light-weight steel body with durable powder coat.
* Asbests-free brake discs.
* Bearing mechanism to increase mechanical efficiency.
* G-80 load chain for sprocket made of alloy steel with precision machining has been got well heat-treatment.
* More thickness of sheet cover,gear cover and side plates for good quality.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one.
* CE AND GS CERTIFIED.
* One year guarantee.
KEY SPECS
| Model | Rated Load (Ton) |
Standard Lift (m) |
Test Load (Ton) |
Efforts Required at Capacity (N) |
Diameter of Load Chain (mm) |
No. of Load Chains |
Major Dimensions(approx) (mm) | Net Weight (kg) |
Extra Weight Per Meter of extra Lift (kg) |
|||
| A | B | C | D | |||||||||
| HSZ-0.5J | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 125 | 111 | 260 | 28 | 8 | 1.5 |
| HSZ-1J | 1 | 2.5 | 1.5 | 314 | 6 | 1 | 147 | 126 | 275 | 32 | 11 | 1.7 |
| HSZ-1.5J | 1.5 | 2.5 | 2.25 | 343 | 8 | 1 | 183 | 141 | 345 | 38 | 16 | 2.4 |
| HSZ-2J | 2 | 2.5 | 3 | 318 | 6 | 2 | 147 | 126 | 396 | 40 | 16 | 2.5 |
| HSZ-3J | 3 | 3 | 4.5 | 347 | 8 | 2 | 183 | 141 | 486 | 44 | 25 | 3.7 |
| HSZ-5J | 5 | 3 | 7.5 | 382 | 10 | 2 | 215 | 163 | 616 | 50 | 35 | 5.3 |
| HSZ-10J | 10 | 3 | 12.5 | 390 | 10 | 4 | 365 | 163 | 700 | 64 | 69 | 9.7 |
| HSZ-20J | 20 | 3 | 25 | 390 | 10 | 8 | 595 | 191 | 1000 | 82 | 155 | 19.4 |
| HSZ-30J | 30 | 3 | 37.5 | 394 | 10 | 10 | 700 | 394 | 1050 | 82 | 233 | 23.9 |
