0.5 Ton - 10 Ton Single Speed Electric Chain Hoist Durable Electric Chain Block

0.5 Ton - 10 Ton Single Speed Electric Chain Hoist Durable Electric Chain Block

    • 0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block
    • 0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block
    • 0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block
    • 0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block
  • 0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block

    Product Details:

    Place of Origin: Jiangsu , China
    Brand Name: SEAGULL
    Certification: CE
    Model Number: Industrial Lifting Equipment Super Alloy Steel Chain Electrical Hoist

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 pieces
    Price: Negotiable
    Packaging Details: wooden box.
    Delivery Time: 30 days after confirming the contract
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Warranty: One Year Condition: New
    Quality Test: 100% 1.5times Tested One By One Before Packages Body Material: Alloy Steel
    Standard: GS/CE Application: Warehouse, Building, Wharf, Farm, Ect.
    Power Source: Electric Chain: G80

    0.5 Ton - 10 Ton Single Speed Electric Chain Hoist Durable Electric Chain Block

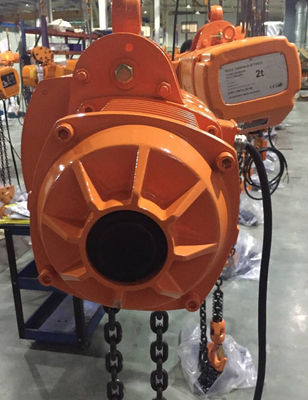

    Product Description
    Capacity:0.5t,1t,2t,3t,5t,7,5t,10t,15t,25t,30t,35t.
    Motor: Work class F insulation.
    Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30minof continuous duty work at least.
    Gear: All the gearing process by CNC Digital lathe with heat treating
    Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipationwith the rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate andelectroplate factroy
    Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force. It allowsinstant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
    Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
    Chain: FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .
    Hook: Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
    Support frame:The loading support frame consists of two steel plates which is extremely sturdy
    Transformer:24/36V transformer device forbid unexpected accidents such as electric leakage.
    Electromagnetic contactor:It can use safely under high frequency
    Phase protect device: It wonn't work when error wiring connecting by the end user to keep safe
    Control button: IP 54 protection on electric hoist for dust and water proof protection.36V control

    0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block




    0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block


     Techinal parameters

    ModelRated Load(ton)Standard Lifting Height(m)

    Lifting Speed
    (m/min)

    Power
    (kw)

    Rotation Speed
    (r/min)

    Phase

    Voltage
    (v)

    Frequency
    (hz)

    Chain FallsChain SpecificationTest Load (t)

    Weight
    (kg)

    Weight added with 1m higer (kg)
    SGW-00501SF0.536.80.7514403200-440501φ6.30.625470.81
    SGW-01001SF136.61.514404200-441501φ7.11.25611.1
    SGW-01002SF133.40.7514405200-442502φ6.31.25521.62
    SGW-01501SF1.538.8314406200-443501φ10.01.8751082.3
    SGW-02001SF236.6314407200-444501φ10.02.51152.3
    SGW-02002SF233.31.514408200-445502φ7.12.5732.2
    SGW-02501SF2.535.4314409200-446501φ11.23.1251162.8
    SGW-03001SF335.43144010200-447501φ11.23.751222.8
    SGW-03002SF334.43144011200-448502φ10.03.751314.7
    SGW-05002SF532.73144012200-449502φ11.26.251515.6
    SGW-10004SF1032.73144013200-450504φ11.212.53008.4


    Test
    0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block


    Packing
    0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block

    Certificate
    0.5 Ton - 10 Ton Single Speed  Electric Chain Hoist Durable Electric Chain Block

    See more :SEAGULL ELECTRIC HOIST SGW 1.pdf
