| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | GCL610 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your down payment |
| Payment Terms: | LC, TT |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Geared Trolley | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 0.5t - 10t | Surface: | Painting, Chrome |
| Standard: | GS/CE | Type: | Manual |
| High Light: | chain fall trolley,chain block trolley |
||

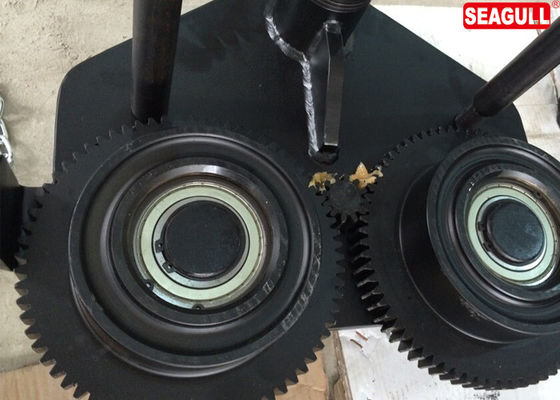

10 ton Push Travel Trolley Hand Plain Trolley With Chain Used for Hoist travelling
PRODUCT SUMMARY
This SEAGULL Manual Geared Trolley is ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work. Mount on wide-flange H-beams, standard I-beams, or curved tracks.
DESCRIPTION
* Capacity from 0.5T-10T.
* Wheels lubricated and equipped with bearings for long life.
* More thickness of the steel plates and strong shaft to ensure the good safety.
* The static test is 4 times of capacity, and running test is 1.5times of capacity one by one.
* One year guarantee.
KEY SPECS
| Model | Rated Load (T) |
Test Load (T) |
Dimensions(mm) | I-Beam recommended |
Net Weight (kg) |
|||
| A | B | C | H | |||||
| 0.5 | 0.5 | 0.75 | 271 | 172 | 190 | 108.5 | 75-125 | 8 |
| 1 | 1 | 1.5 | 271 | 206 | 222 | 122 | 75-125 | 12.5 |
| 1.5 | 1.5 | 2.25 | 308 | 231 | 238.5 | 130 | 100-150 | 15 |
| 2 | 2 | 3 | 308 | 240 | 267 | 132.5 | 100-150 | 16.5 |
| 3 | 3 | 4.5 | 342 | 279 | 319 | 181 | 100-150 | 23 |
| 5 | 5 | 7.5 | 384 | 318 | 384 | 219 | 125-175 | 37 |
| 10 | 10 | 15 | 442 | 380 | 490 | 275 | 125-180 | 68 |
