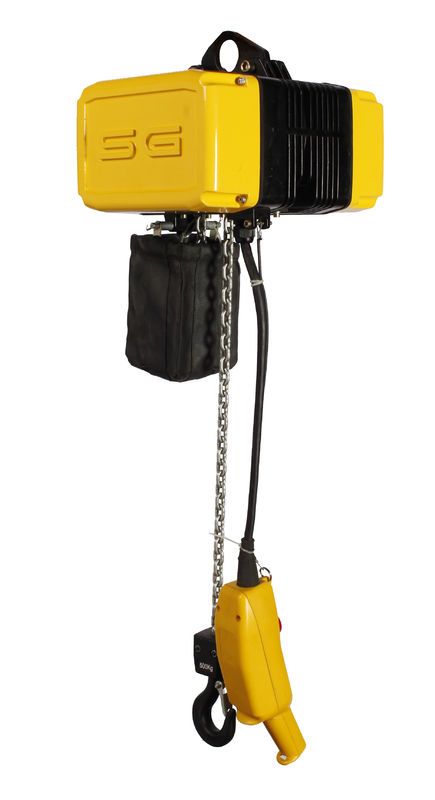

small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg

small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg

    • small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg
    • small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg
    • small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg
  • small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg

    Product Details:

    Place of Origin: China,Jiangsu
    Brand Name: SEAGULL
    Certification: CE
    Model Number: SG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: Negotiable
    Packaging Details: carton and pallet
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 30000 sets per year
    Contact Now
    Detailed Product Description
    Condition: New Usage: Construction Hoist
    Power Source: Electric Maximum Lifting Weight: 1000KG
    Warranty: One Year Certification: CE
    Material For Portable Crane: Aluminum Alloy Function: Lifting
    Lift Speed: 8m/min Color: Optional

    220-460V 500kg CE certificated small portable SG Type Electric Chain Block for warehouse use



    Product Description

    1. With suspension hook. push, geared or electric trolley.

    2. Standard lift height 3 m, control cable 3m

    3. Operating voltage 220-460V, 50/60Hz, 1-3 phase

    4. Low voltage control 24V is standard.

    5. High efficient energy-saving motor, asbestos free brake system.


    small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg





    Technical Parameters

    SG ELECTRIC HOIST
    Work class M3 M4 M5 M6 M7
    150 180 240 300 360

    Lifting speed
    (m/min)

    Lifting height
    (m)

    Power km
    (M3)

    Weight
    (kg)

    %ED 25% 30% 40% 50% 60%
    Model Capacity
    SGXXX/1N 500 400 320 250 200 8 3 0.8 25
    SGXXX/1NF 500 400 320 250 200 8/2 3 0.8/0.2 25
    SGXXX/1S 320 250 200 160 125 12.5 3 0.8 25
    SGXXX/1SF 320 250 200 160 125 12.5/3 3 0.8/0.2 25
    SGXXX/1H 200 160 125 100 80 20 3 0.8 25
    SGXXX/1HF 200 160 125 100 80 20/5 3 0.8/0.2 25
    SGXXX/2N 1000 800 630 500 400 4 3 0.8 27
    SGXXX/2NF 1000 800 630 500 400 4/1 3 0.8/0.2 27
    SGXXX/2S 630 500 400 320 250 6.3 3 0.8 27
    SGXXX/2SF 630 500 400 320 250 6.3/1.5 3 0.8/0.2 27
    SGXXX/2H 400 320 250 200 160 10 3 0.8 27
    SGXXX/2HF 400 320 250 200 160 10/2.5 3 0.8/0.2 27



    Certification
    small portable SG Type Electric Chain Block for warehouse use , 220-460V 500kg

       ISO9001:2008                                                TUV CE                                             ECM CE



    more information pleasedownload the PDF:

    SEAGULL ELECTRIC HOIST SG TYPE.pdf
