3t 5t 60hz Electric Single Phase Chain Hoist For Wharf , Lifting Height 12m

3t 5t 60hz Electric Single Phase Chain Hoist For Wharf , Lifting Height 12m

  • 3t 5t 60hz Electric Single Phase Chain Hoist For Wharf ,  Lifting Height 12m
  • 3t 5t 60hz Electric Single Phase Chain Hoist For Wharf ,  Lifting Height 12m
3t 5t 60hz Electric Single Phase Chain Hoist For Wharf ,  Lifting Height 12m
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: HHXG2
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30-60 working days after received your payment
Supply Ability: 2500pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Chain Hoist Application: Warehouse, Building, Wharf, Ect.
Capacity: 0.5t, 1t, 2t, 3t, 5t Surface: Painting
Standard: GS/CE Type: Electric
High Light:

electric chain block

,

electric chain fall

,

Height 12m Electric Chain Hoist

Product Description

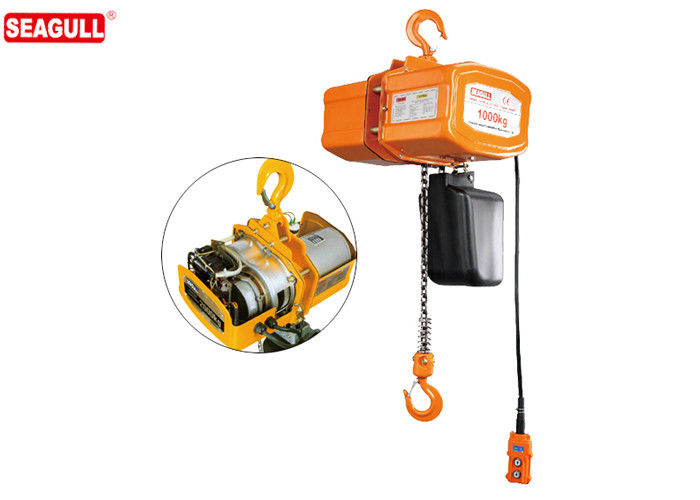

Single Phase 60hz Fast Speed Electric Chain Hoist Capacity 500kg Lifting Height 12m

SEAGULL® Electric Power Chain Hoist lifts and lowers loads up to 40 feet (12m) — all with the push of a button. No need to climb a ladder and crank a lever with this hoist; you can remain on the ground to control operations. Enclosed steel plate construction holds a heavy-duty ventilated motor with thermal overload protection. Gear trains are permanently lubricated for long life.



Advantages


1) With suspension hook. push, geared or electric trolley.
2) Standard lift height 3 m, control cable 3m
3) Operating voltage 220-460V , 50/60Hz.
4) Low voltage control 24V is standard.
5) High efficient energy-saving motor, asbestos free brake system.
6) Top and bottom hooks are fitted with safety latches as standard.
7) Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8) Solid chain bucket.
9) Super strong surface hardened chain.
10) Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
11) The unique friction clutch overload protection, which protects the unit from overloading.
12) High quality electric components with safety protection



3t 5t 60hz Electric Single Phase Chain Hoist For Wharf ,  Lifting Height 12m 0



Technical Parameters

Model Rated Load Lift Lifting Speed Hoist Motor 1-phase Load Chain Dynamical Min. Headroom
(Ton) (m) (m/min) Output(kw) Ins Class % ED Dia(mm) Number of falls Test (KN) MaxG(mm)
HHXG205 0.5 3 5.2 0.8 F 40 7.1 1 5.5 545
HHXG210 1 3 5.2 1.2 F 40 7.1 1 11 580
HHXG220 2 3 2.6 1.2 F 40 7.1 2 22 740
HHXG230 3 3 1.7 1.2 F 40 7.1 3 33 790


Application



This electric hoist can be used in factories ,mines,agriture,electric power,construction buildingsite,dock,and warehouse for installing the machines,lifting the cargoes,loading and unloading the trucks.



Certificate

3t 5t 60hz Electric Single Phase Chain Hoist For Wharf ,  Lifting Height 12m 1
