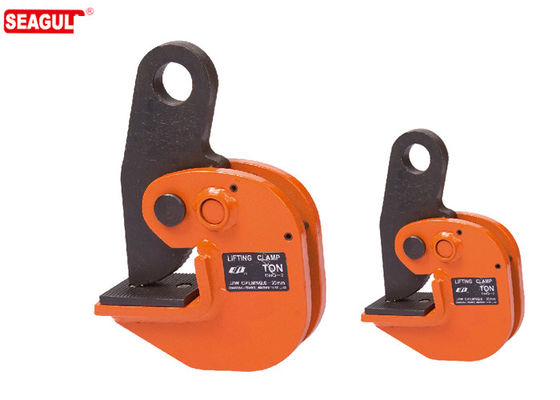

Horizontal Steel Plate Lifting Clamps , 2 And 1 Ton Plate Clamp

Horizontal Steel Plate Lifting Clamps , 2 And 1 Ton Plate Clamp

    • Horizontal Steel Plate Lifting Clamps , 2 And 1 Ton Plate Clamp
    • Horizontal Steel Plate Lifting Clamps , 2 And 1 Ton Plate Clamp
  • Horizontal Steel Plate Lifting Clamps , 2 And 1 Ton Plate Clamp

    Product Details:

    Place of Origin: China,Jiangsu
    Brand Name: SEAGULL
    Certification: ISO
    Model Number: DHQ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: High quality double wall carton and steel pallets outside.
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 2500 piece per month
    Contact Now
    Detailed Product Description
    Material: Steel Condition: New
    Usage: Lifting Steel Plate Color: Optional
    Warranty: 1 Year Capacity: 0.8ton-10ton

    DHQ horizontal steel plate lifting clamp / adjustable clamp range:0.8ton -10ton



    Product Description

    Capacity from 0.8T to 10T.

    *Forged head and forged gear set ensure the durability and safety.

    * Gripper is HRC 52-57 for longlife use.

    *More thickness of the steel plates to ensure the good safety.

    *One year guarantee.











    Technical Data Sheet



    Model DHQ-0.8 DHQ-1 DHQ-1.6 DHQ-2 DHQ-3 DHQ-4 DHQ-5 DHQ-6 DHQ-6(B) DHQ-8 DHQ-10
    Rated Capacity(T) 0.8 1.0 1.6 2.0 3.0 4.0 5.0 6.0 6.0 8.0 10.0
    Test Load 1.6 2.0 3.2 4.0 6.0 8.0 10.0 12.0 12.0 16.0 20.0
    Jaw Opening(mm) 0-25 0-30 0-30 0-40 0-45 0-50 0-55 0-65 0-130 0-100 0-125
    Net Weight 2.5 3.5 4.0 5.0 6.0 6.5 7.5 10.5 22.0 22.0 33.0



    Product instructions

    • Not to do heavy lifting, class hanging, hanging, hanging off the crane and cross hanging crane
    • Never enter the hanging material or flip the area
    • Do not knock or crash on hanging objects and spreaders
    • Do not move or stop abruptly
