| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | JC-E |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Hand Winch | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 3 Ton | Surface: | Painting, Chorme |
| Standard: | GS/CE | Type: | Manual |
| High Light: | manual winch for lifting,manual winch with brake |
||

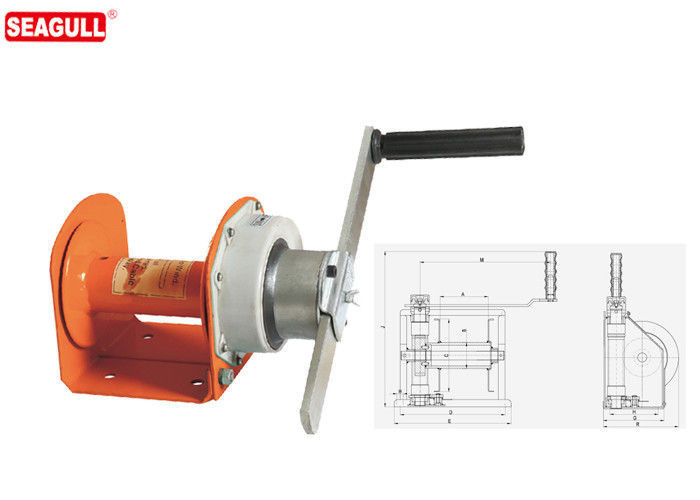

PRODUCT SUMMARY
Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released.
DESCRIPTION
1. It is small, light, easy to use fitted with the device of friction btaking.
2. It is a kind of light and handy flexible drawing tools, Suitable for automobile, ship mooring, trees, etc.'s drawing the homework.
KEY SPECS
| Model | 0.5 t | 1 t | 2 t | 3 t | |
| Safe Working Load (t) | 0.5 | 1 | 2 | 3 | |
| Test load (Kn) | 6.125 | 12.25 | 24.5 | 36.75 | |
| Adopted Wire Rope dia x length (mm) | Φ6.3x40 | Φ8x40 | Φ9x40 | Φ12.5x40 | |
| Speed Ratio | 4.33:1 | 12.19:1 | 22.68:1 | 29.16:1 | |
| The Max. Length of Link-pole action (mm) | 350 | 350 | 350 | 350 | |
| Min. Force of Hand Turn (N) | 120 | 120 | 130 | 180 | |
| Dimensions (mm) | A | Φ60 | Φ76 | Φ90 | Φ100 |
| B | Φ140 | Φ175 | Φ190 | Φ230 | |
| C | 150 | 154 | 195 | 205 | |
| D | 100 | 110 | 155 | 155 | |
| E | Φ15 | Φ18 | Φ18 | Φ18 | |
| F | 403 | 443 | 490 | 549 | |
| H | 182 | 214 | 230 | 296 | |
| I | 130 | 170 | 170 | 170 | |
| J | 245 | 266 | 300 | 365 | |
| Net weight(no wire rope) (kg) | 14.4 | 19.7 | 25.1 | 44.3 | |
