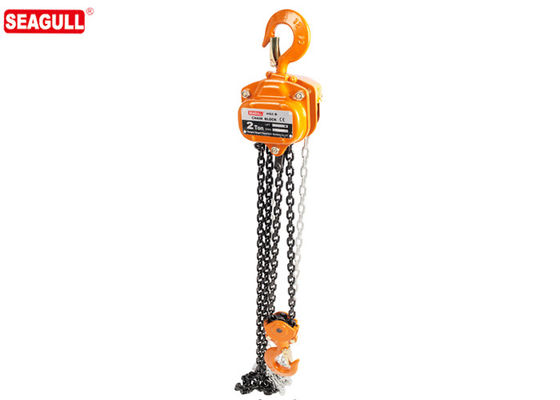

TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist

TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist

  • TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist
  • TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist
  • TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist
TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: HSZ-B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
Delivery Time: 30 working days after received your payment
Supply Ability: 150000 pcs per year
Contact Now
Detailed Product Description
Product Name: Manual Chain Block Application: Transport
Capacity: 2ton Surface: Painting, Chorme
Standard: GS/CE Power Source: Hand Chain
High Light:

hand chain hoist

,

chain block hoist

HSZ-B type chain block hoist TUV CE approved 2 ton lifting chain hoist

Production Description



SEAGULL manual chain hoist features steel-casting housing, Grade 80 chain and a compact design that's perfect for tight spaces. Black

finish lift chain is rust resistant and durable, while zinc-plated pull chain resists rust. All-steel construction for durability and

wear resistance.

TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist 0



Technical Parameters



Model HSZ-0.5B HSZ-1B HSZ-1.5B HSZ-2BS HSZ-2BD HSZ-3B HSZ-5B HSZ-10B HSZ-15B HSZ-20B HSZ-30B
Rated load (T) 0.5 1 1.5 2 2 3 5 10 15 20 30
Standard lift (m) 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 3 4.5 7.5 12.5 18.75 25 37.5
Efforts required at capacity (N) 262 324 395 380 330 402 430 438 447 438 442
Diameter of load chain (mm) 5 6 7.1 8 6 7.1 10 10 10 10 10
No. of load chains 1 1 1 1 2 2 2 4 6 8 10
Dimensions (mm) A 127 156 180 181 156 180 230 410 410 645 710
  B 115 131 142 148 131 142 171 171 204 215 398
  C 288 334 415 435 459 536 660 738 1028 1002 1050
Net weight (kg) 7 10.5 15.5 18.5 16 23 39 69 95 155 237
Extra weight per meter of extra lift (kg) 1.5 1.8 2 2.4 2.7 3.2 5.3 9.8 14.2 19.6 23.9



Application



chain block is widely used in factories,miners,docks,warehouses,construction sites,agriculture and other fields, to lift goods and lifting equipment, in particular in conditions with no power supply or narrow , demonstrate superiority.



Advantages



- Capacity from 0.25T to 30T.

- Have certificate of CE.

- Got certificate of ISO9001.

- Drop forged hooks and hook holders to ensure superior quality and safety.

- More thickness of sheet cover,gear cover and side plates for good quality.

- Automatic double-pawl braking system.

- The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.

- Asbests-free brake discs.



Product instructions

The use of gourd should be cleaned and coated with anti-rust grease, stored in a dry place.



Product line

TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist 1





Packing



TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist 2



Company overview

TUV CE Approved Manual Chain Block / 2 Ton Lifting Chain Hoist 3
