1.5 ton - 25 ton Mechanical Construction Small Lifting Jack With Long Working Life

1.5 ton - 25 ton Mechanical Construction Small Lifting Jack With Long Working Life

    • 1.5 ton - 25 ton Mechanical Construction Small Lifting Jack With Long Working Life
    • 1.5 ton - 25 ton Mechanical Construction Small Lifting Jack With Long Working Life
  • 1.5 ton - 25 ton Mechanical Construction Small Lifting Jack With Long Working Life

    Product Details:

    Place of Origin: CHINA
    Brand Name: SEAGULL
    Certification: GS/CE
    Model Number: Mechanical Lifting Jack

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
    Delivery Time: 30 working days after received your down payment
    Supply Ability: 12,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Mechanical Lifting Jack Application: Warehouse, Building, Wharf, Ect.
    Capacity: 1.5t - 10t Surface: Painting, Chorme
    Standard: GS/CE Type: Mechincal

    1.5 ton -25 ton mechanical construction small lifting jacks with long working life





    DESCRIPTION

    * From 1.5T to 10T.

    * CE approved.

    * One year guarantee.



    Mechanical jack is a widely used in automobile manufacturing,casting machinery,transportation equipment, such as for lifting,equipment,machinery products supported. Mechanical jack high quality,good quality,safe,simple,convenient.



    KEY SPECS

    MODEL 1.5t 3t 5t 10t
    RATED CAPACITY  (t) 1.5 3 5 10
    TEST LOAD (kn) 18.4 36.8 61.3 122.5
    CHAIN SHAKE TO LIFT FULL LOAD (N) 150 280 280 560
    STROKE (mm) 300 350 350 410
    MIN. LIFTING F 25 40 40 40
    HEIGHT (mm) H 600 735 735 805

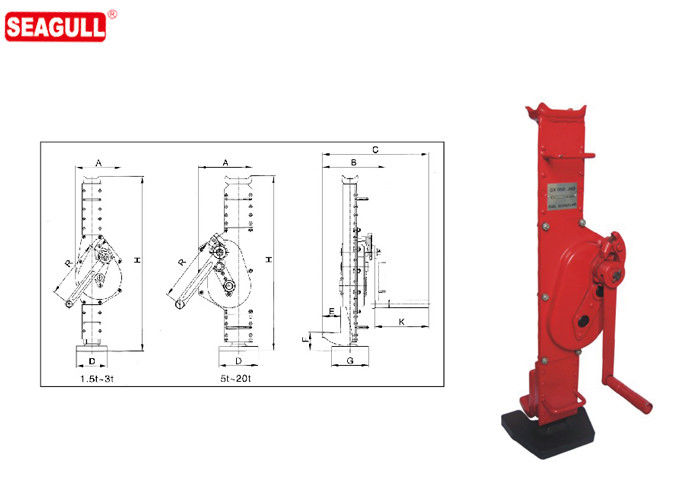

    DIMENSIONS (mm) A 163 197 189 250
    B 206 219 258 318
    C 289 316 355 523
    D 160 170 200 220
    E 55 60 70 86
    G 140 150 170 170
    K 113 127 127 248
    R 225 250 275 300
    NET WEIGHT (kg) 14.8 23.3 31.3 49
