| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | HHBD |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Electric Trolley | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 1000kg, 2000kg | Surface: | Painting, Chorme |
| Standard: | GS/CE | Type: | Electric |
| High Light: | electric chain block,electric chain fall |
||

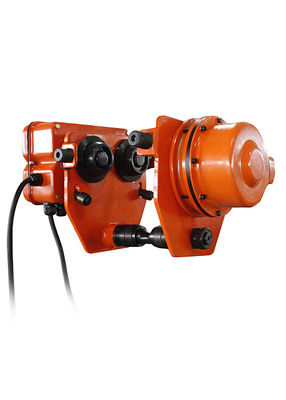

1000KG - 2000KG ELECTRIC TROLLEY
PRODUCT SUMMARY
The SEAGULL® Electric Trolley can lift up to a 2000kg load. Mounts to fit 75mm to 180mm I-beams and wide flange beams.
Specifications
Electric trolley,motorized trolley
Single Phase and Three Phase are available
trolleys for industry
HHBD type electric trolley.
* Capacity form 0.5t to 5t.
* Safe, reliable with interlock device.
* Gear hardness: HRC32-36 for long life.
* Both single phase and three phase are available.
* One year guarantee.
KEY SPECS
| Model | HHBD210 | HHBD220 | |
| Rated Capacity(kg) | 1000 | 2000 | |
| Beam Width(mm) | 75-180 | 75-180 | |
| Dimensions(mm) | A | 27.5 | 36.5 |
| B | 265 | 265 | |
| C | 260 | 260 | |
| D | 27 | 36 | |
| E | 10 | 10 | |
| Runing Speed(m/min) | 20 | 20 | |
| Ins Class | F | F | |
| % ED | 40 | 40 | |
| Hoist Motor Output(kw) | 0.3 | 0.3 | |
| Net Weight(kg) | 43 | 45 | |
