| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | HWG |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Hand Winch | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 150kg - 2000kg | Surface: | Painting, Chorme |
| Standard: | GS/CE | Type: | Manual |
| High Light: | manual winch for lifting,manual hand winch |
||

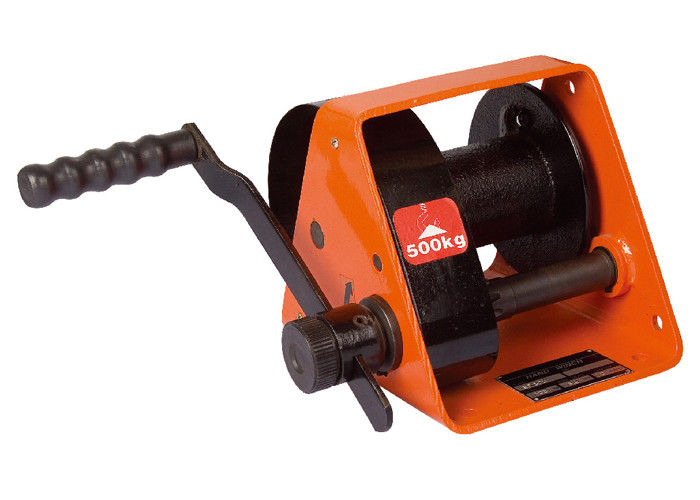

150KG - 2000KG HAND WINCH
PRODUCT SUMMARY
Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released.
DESCRIPTION
* Capacity form 150kg to 2000kg
* Self-lock device to ensure the safety
* Easily operation with little efforts.
* Handle adjustment is quick and simple.
* One year guarantee.
KEY SPECS
| Model | GR150 | GR300 | GR500 | GR1000 | GR2000 |
| S.W.L(kg) | 150 | 300 | 500 | 1000 | 2000 |
| For wire rope(mm) | 4 | 5 | 6.3 | 9.3 | 13 |
| Length(m) | 22 | 40 | 20 | 35 | 30 |
| Number of layers | 6 | 6 | 4 | 4 | 4 |
| N.W(kg) | 5.5 | 16.9 | 18.8 | 38 | 68.4 |
| A(mm) | 180 | 240 | 240 | 412 | 500 |
| B(mm) | 325 | 385 | 385 | 485 | 585 |
| C(mm) | 150 | 200 | 200 | 300 | 325 |
| D(mm) | 150 | 200 | 200 | 300 | 405 |
| E(mm) | 350 | 250 | 250 | 350 | 350 |
| Φx(mm) | 4x22 | 5x40 | 6.8x20 | 9x35 | 13x30 |
| Drive ratio | 2.84:1 | 6.67:1 | 7.75:1 | 23.75:1 | 43.7:1 |
| 4xΦ | 4xΦ9 | 4xΦ13 | 4xΦ13 | 4xΦ17 | 4xΦ21 |
