| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | H8500(12V/24V) |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Electric Winch | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 8500lb | Surface: | Painting, Chorme |
| Standard: | GS/CE | Type: | Electric |
| Highlight: | portable atv winch,winches for atv |
||
Product Description

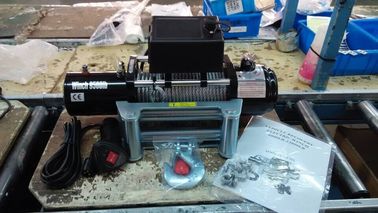

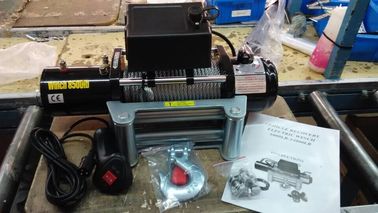

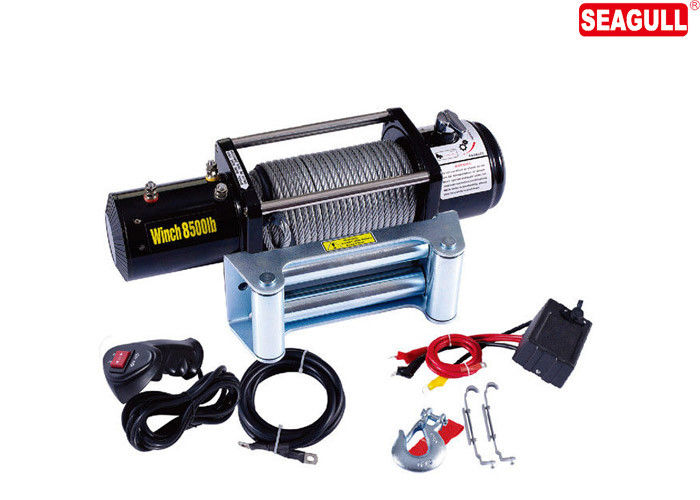

8500lb Electric ATV Winch
Features an all-metal planetary geartrain plus mechanical and dynamic braking. Frees pooling clutch with ergonomic control. Has sealed solenoids for all-weather protection. Sealed handlebar switch and 10-ft. remote. Includes roller fairlead and mounting plate.
Advantages
* Capacity from 0.5T-30T.
* Wheels lubricated and equipped with bearings for long life.
* More thickness of the steel plates and strong shaft to ensure the good safety.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one
* One year warranty
Technical Parameters
| Model | H8500(12V/24V) |
| Rated line pull | 8500lb(3856kg) single line |
| Motor | 4.0KW/5.5HP 12V,Permanent magnet |
| Control | Remote switch,12ft(3.7m) lead |
| Gear train | 3 Stage Planetary |
| Gear reductions ratio | 195.8:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Two-way,Automatic In-The-Drum |
| Drum Dimensions | Φ2.5"x8.8"(Φ63.5mmx224mm) |
| Cable (Dia X L) | Φ5/16"x94'(Φ8.1mmx28m) |
| Fairlead | 4-Way Roller Fairlead |
| Wireless Remote control | Optional |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(1.83m) |
| Overall dimensions | 21.1"x6.3"x8.6"(537x160x218mm) |
| Mounting Bolt Pattern | 254mmx114.3mm |
| N.W. /G.W. | N.W/G.W:35kg/37kg |
Packing
