| Place of Origin: | CHINA |
| Brand Name: | SEAGULL |
| Certification: | GS/CE |
| Model Number: | SLR074-G80 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in carton firstly,and then reinforced with steel case for outer packing |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | D/P, L/C, T/T |
| Supply Ability: | 12,000pcs per month |
| Product Name: | Connecting Link | Application: | Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 1t - 31t | Surface: | Painting, Chorme |
| Highlight: | rope rigging hardware,connecting chain link |
||
Product Description

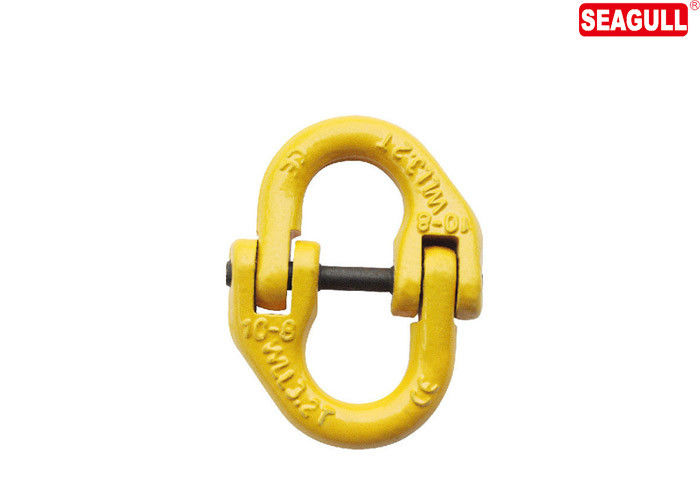

15t Connecting Link
Forged super alloy steel-Quenched and Tempered.
Individually proof test at 2 times Working Load Limit.
Breakage test.
100% magnaflux crack detection.
Surface finish:Powder plastified
Colour code: Red RAL3020/Yellow RAL1003
All sizes are forged.
ALL SIZES:There will be pressing flat only on request
Technical Parameters
| Item No. | WEIGHT (KG) |
Wll Rope (T) |
B.L (T) |
A±1.5 | B±1 | L±2.5 | K±2 | H±1 |
| 8-SLR074-06 | 0.08 | 1.12 | 4.48 | 15 | 7.5 | 58 | 42 | 7 |
| 8-SLR074-7 | 0.145 | 1.5 | 6 | 19 | 8.5 | 71.8 | 54.8 | 8.5 |
| 8-SLR074-7/8 | 0.146 | 2 | 8 | 18 | 9.5 | 79.5 | 60.5 | 8.5 |
| 8-SLR074-8 | 0.16 | 2 | 8 | 19.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 8-SLR074-10 | 0.3 | 3.15 | 12.6 | 25 | 12 | 90.5 | 68 | 11.5 |
| 8-SLR074-13 | 0.65 | 5.3 | 21.2 | 29 | 15 | 117 | 87 | 15 |
| 8-SLR074-16 | 1.15 | 8 | 32 | 34.5 | 19.8 | 148 | 108.4 | 19.8 |
| 8-SLR074-18 | 1.84 | 10 | 40 | 38 | 21 | 154 | 112 | 21 |
| 8-SLR074-20 | 2.1 | 12.5 | 50 | 41 | 24 | 169.5 | 121.5 | 24 |
| 8-SLR074-22 | 2.87 | 15 | 60 | 48 | 26 | 193.5 | 141.5 | 26 |
| 8-SLR074-26 | 4.5 | 21.2 | 84.8 | 57.5 | 31 | 220 | 158 | 30 |
| 8-SLR074-32 | 8.21 | 31.5 | 126 | 67 | 38 | 281 | 205 | 37 |
Application
