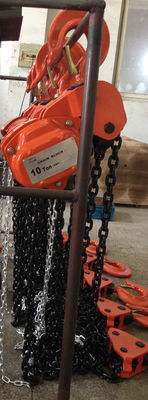

10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use

10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use

  • 10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use
  • 10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use
10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use
Product Details:
Place of Origin: China
Brand Name: SEAGULL
Certification: CE,GS
Model Number: HSZ-B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Usd27-Usd5000
Packaging Details: Double Wall Carton&Steel pallet
Delivery Time: 30 Days After Confirm The Pi
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 12000Pcs/Month
Contact Now
Detailed Product Description
High Light:

hand chain hoist

,

chain block hoist

10 T Manual Chain Hoist Orange Double Pawl Braking For Lifting Use





10T Chain Block Orange Colour For Lifting use




DESCRIPTION
- Capacity from 0.25T to 30T.
- Have certificate of CE.
- Got certificate of ISO9001.
- Drop forged hooks and hook holders to ensure superior quality and safety.
- More thickness of sheet cover, gear cover and side plates for good quality.
- Automatic double-pawl braking system.
- The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.
- Asbests-free brake discs.
KEY SPECS
Model HSZ-0.5B HSZ-1B HSZ-1.5B HSZ-2BS HSZ-2BD HSZ-3B HSZ-5B HSZ-10B HSZ-15B HSZ-20B HSZ-30B
Rated load (T) 0.5 1 1.5 2 2 3 5 10 15 20 30
Standard lift (m) 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 3 4.5 7.5 12.5 18.75 25 37.5
Efforts required at capacity (N) 262 324 395 380 330 402 430 438 447 438 442
Diameter of load chain (mm) 5 6 7.1 8 6 7.1 10 10 10 10 10
No. of load chains 1 1 1 1 2 2 2 4 6 8 10
Dimensions (mm) A 127 156 180 181 156 180 230 410 410 645 710
  B 115 131 142 148 131 142 171 171 204 215 398
  C 288 334 415 435 459 536 660 738 1028 1002 1050
Net weight (kg) 7 10.5 15.5 18.5 16 23 39 69 95 155 237
Extra weight per meter of extra lift (kg) 1.5 1.8 2 2.4 2.7 3.2 5.3 9.8 14.2 19.6 23.9
