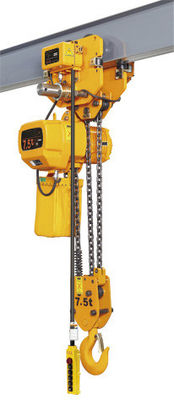

Remote Control 7.5t Electric Chain Block Travel Trolley 6m For Building Use

  • Remote Control 7.5t Electric Chain Block Travel Trolley 6m For Building Use
Remote Control 7.5t Electric Chain Block Travel Trolley 6m For Building Use
Product Details:
Place of Origin: CHINA
Brand Name: SEAGULL
Certification: GS/CE
Model Number: SGW
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: Packed wood box&steel pallet outside
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Hoist Application: Warehouse, Building, Wharf, Ect.
Capacity: 0.5t - 10t Surface: Painting
Standard: GS/CE Type: Electric
Highlight:

electric chain block

,

electric chain fall

Remote Control 7.5t Electric Chain Block Travel Trolley 6m For Building Use





Model:

0.5t,1t,2t,3t,5t,7,5t,10t,15T,20T,25T,30T



Specification:


Motor: Work class F insulation. Duty rating:45%.Aluminum alloy motor with light weight and good heat dissipation to allow up 30min
            of continuous duty work at least.
Gear: All the gearing process by CNC Digital lathe with heat treating
Shelly:Made of light aluminum alloy shell.Light&hard. The cooling fin is especially designed to ensure quick heat dissipation
          with the rate up to 45% and continuous service. The integral enclosed structure is applicable to places like chemical plate and
          electroplate factroy
Side magnetic braking device:The magnetic orce generator is the lastest design which is featured for generating magnetic force. It allows
           instant brake cut off electric power asap.Keep the braking safety while loading is guaranteed
Limit switch :The limit switch automatically stop the hoist overlifting or overlowering
Chain: FEC JAPAN made G-80 super alloy steel chain.Heat treated to used in harsh environments .
Hook: Hot fored with perfect strength and tough with saftey latch on the top&bottom hook. Bottom hook swivels through 360°
Support frame:The load










 .







.










KEY SPECS

Model Rated Load
(Ton)
Standard Lifting
Height (m)
Lifting Speed
(m/min)
Lifting Motor
Power
(kw)
Rotation
Speed (r/min)
Phases Voltage
(v)
Frequency
(Hz)
SGW-00501SF 0.5 3 6.8 0.75 1440 3 200-440 50
SGW-01001SF 1 3 6.6 1.5 1440 3 200-440 50
SGW-01002SF 1 3 3.4 0.75 1440 3 200-440 50
SGW-01501SF 1.5 3 8.8 3 1440 3 200-440 50
SGW-02001SF 2 3 6.6 3 1440 3 200-440 50
SGW-02002SF 2 3 3.3 1.5 1440 3 200-440 50
SGW-02501SF 2.5 3 5.4 3 1440 3 200-440 50
SGW-03001SF 3 3 5.4 3 1440 3 200-440 50
SGW-03002SF 3 3 4.4 3 1440 3 200-440 50
SGW-05002SF 5 3 2.7 3 1440 3 200-440 50
SGW-10004SF 10 3 2.7 3 1440 3 200-440 50





Model Chain
Falls
Chain
Specification
Test Load
(t)
Weight
(kg)
Weight Added
with 1m Higher (kg)
SGW-00501SF 1 Φ6.3 0.625 47 0.81
SGW-01001SF 1 Φ7.1 1.25 61 1.1
SGW-01002SF 2 Φ6.3 1.25 52 1.62
SGW-01501SF 1 Φ10.0 1.875 108 2.3
SGW-02001SF 1 Φ10.0 2.5 115 2.3
SGW-02002SF 2 Φ7.1 2.5 73 2.2
SGW-02501SF 1 Φ11.2 3.125 116 2.8
SGW-03001SF 1 Φ11.2 3.75 122 2.8
SGW-03002SF 2 Φ10.0 3.75 131 4.7
SGW-05002SF 2 Φ11.2 6.25 151 5.6
SGW-10004SF 4 Φ11.2 12.5 300 8.4
