Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use

Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use

    • Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use
    • Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use
  • Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: SEAGULL
    Certification: GS/CE
    Model Number: TG

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 PCS
    Price: Negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with steel case for outer packing
    Delivery Time: 30 working days after received your down payment
    Payment Terms: LC, TT
    Supply Ability: 12,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Type Geared Trolley Application: Warehouse, Building, Wharf, Ect.
    Capacity: 0.5t - 30t Surface: Painting, Chorme
    Standard: GS/CE Type: Manual

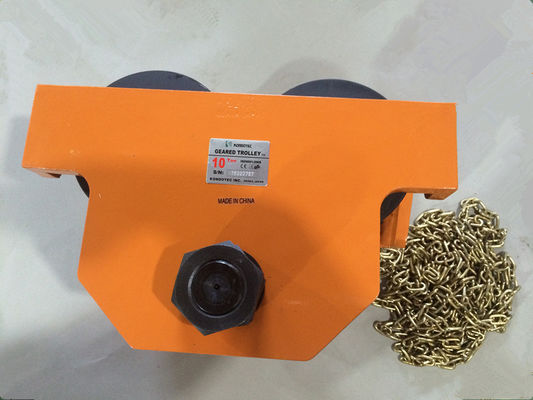

    Safety Manual Geared Push Trolley Hoist 0.5T - 30T For Wharf Use





    PRODUCT SUMMARY
    This SEAGULL Manual Geared Trolley is ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work. Mount on wide-flange H-beams, standard I-beams, or curved tracks.



    DESCRIPTION

    * Capacity form 0.5T-30T.

    * Wheels lubricated and equipped with bearings for long life.

    * More thickness of the steel plates and strong shaft to ensure the good safety.

    * The static test is 4times of capacity, and running test is 1.5times of capacity one by one.

    * One year guarantee.



    DESCRIPTION

    Model Rated Load
    (T)
    Test Load
    (T)
    Chain Pull to
    Lift Full Load(N)
    Dimensions(mm) I-Beam
    recommended
    Net Weight
    (kg)
    A B C H
    0.5 0.5 0.75 60 248 196 190 108 68-126 9
    1 1 1.5 80 280 236 211 115 80-146 13
    2 2 3 140 318 273 236 130 80-168 18
    3 3 4.5 150 340 320 295 164 88-168 25
    5 5 7.5 170 365 366 334 177 100-170 39
    10 10 15 320 410 389 460 237 122-203 70
    20 20 30 340 475 798 575 300 122-203 186
    30 30 37.5 352 392 625 551 260 150-250 245
