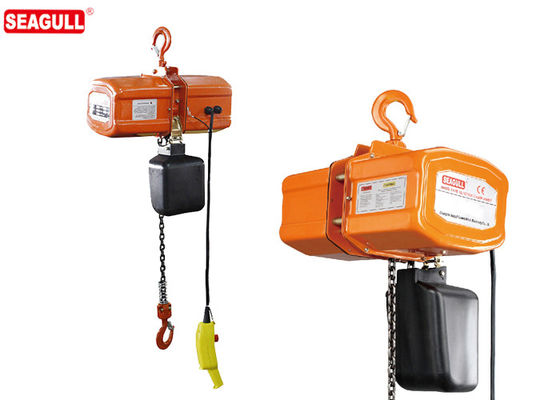

HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton

HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton

    • HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton
    • HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton
  • HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton

    Product Details:

    Place of Origin: China,Jiangsu
    Brand Name: SEAGULL
    Certification: CE
    Model Number: HHXG3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: Negotiable
    Packaging Details: carton and pallet
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 10000 sets per year
    Contact Now
    Detailed Product Description
    Condition: New Usage: Construction Hoist
    Power Source: Electric Sling Type: Chain
    Maximum Lifting Weight: 5t Maximum Lifting Height: 12m
    Warranty: One Year Color: Optional

    HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton

    FEATURES:

    A.  Capacity from 500kg to5000kg

    B. Quality chain is supplied by FEC JAPAN.

    C. Most tensile safety hooks without break.

    D. Compact and high efficient motor with heat protection device.

    E. Push button is with 24v low voltage to guarantee safety.

    F. Limit switch.

    G. Limit load device are fitted.

    H. CE certified.

    I.   IP54 protection on electric hoist for dust and water proof protection.

    HHXG TYPE HOIST:

    1) With suspension hook. push, geared or electric trolley.

    2) Standard lift height 3 m, control cable 3m

    3) Operating voltage 110-440V , 50/60Hz.

    4) Low voltage control 24V is standard.

    5) High efficient energy-saving motor, asbestos free brake system.

    6) Top and bottom hooks are fitted with safety latches as standard.

    7) Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

    8) Solid chain bucket.

    9) Super strong surface hardened chain.

    10) Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.

    11) The unique friction clutch overload protection, which protects the unit from overloading.

    12) High quality electric components with safety protection



    HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton

    HHXG 3PH DoubleE Speed Motorized trolley hoist / electric chain hoist,Capacity 5-Ton










    HHXG3 SUSPENDED TYPE THREE PHASE ELECTRIC CHAIN HOIST
    Model HHXG305 HHXG310 HHXG320 HHXG330 HHXG350
    Rated Load(Ton) 0.5 1 2 3 5
    Lift (m) 3 3 3 3 3
    Lifting Speed (m/min) 6.3 6.3 3.2 2.1 1.3
    Hoist Motor 1-phase output(kw) 0.8 1.6 1.6 1.6 1.6
    Ins Class F F F F F
    %ED 40 40 40 40 40
    Load Chain Dia(mm) 7.1 7.1 7.1 7.1 7.1
    Number of falls 1 1 2 3 5
    Dynamical Test(KN) 5.5 11 22 33 55
    Min.Headroom MaxG(mm) 545 580 740 790 950
    Net Weight (kg) 64 65 72 80 135
    Major Dimensions (approx)(mm) A 249 249 249 249 249
    B 249 249 249 249 249
    C 168 168 134 100 5
    D 146 146 180 214 309
    E 25 32 38 41 48
    F 640 640 675 658 703
    H 197 197 231 265 360
