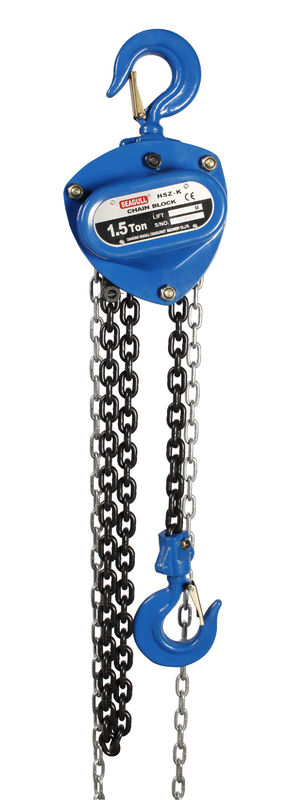

1.5 Ton Manual Lifting Equipment Hand Chain Block For Construction

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	SEAGULL or OEM pointed brand
Certification:	CE GS
Model Number:	HSZ-K

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Higher quality double wall carton+steel pallet.
Delivery Time:	Within 30 days after confirmation
Payment Terms:	L/C, T/T
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Condition:

New

Usage:

Construction Hoist

Power Source:

Manual

Sling Type:

Chain

Highlight:

hand chain hoist

chain block hoist

1.5 T / 1.5 ton / 1.5 tonne super quality chain block , chain hoist ,
construction equipment
1) Capacity from 0.25T to 50T
2) Have certificate of CE
3) Got certificate of ISO9001
4) Automatic double-pawl braking system
5) Asbests-free brake discs
6) Drop forged hooks and hook holders to ensure superior quallity and safety.
7) More thickness of sheet cover,gear cover and side plates for good quality.
8) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.

HSZ-K CHAIN BLOCKS 0.5Ton-30Ton
Model	HAS-0.5K	HSZ-1K	HSZ-1.5K	HSZ-2K	HSZ-3K	HSZ-5K	HSZ-10K	HSZ-20K	HSZ-30K
Rated load(T)	0.5	1	1.5	2	3	5	10	20	30
Standard lift(m)	2.5	2.5	2.5	2.5	3	3	3	3	3
Test load(T)	0.75	1.5	2.25	3	4.5	7.5	12.5	25	37.5
Efforts required at capacity(N)	262	324	395	330	402	430	438	438	442
Diameter of load chain(mm)	5	6	7.1	6	7.1	10	10	10	10
No. of load chains	1	1	1	2	2	2	4	8	10
Dimensions (mm) A B C D	120 116 285 28	147 136 332 32	181 147 410 38	158 136 470 40	202 148 550 44	228 178 640 50	373 178 737 64	638 195 1022 82	703 397 1050 82
Net weight (kg)	7	10	15	17	23	38	68	160	235
