| Place of Origin: | CHINA,Jiangsu |
| Brand Name: | Seagull |
| Certification: | CE |
| Model Number: | DHQ |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | High quality double wall carton and steel pallets outside. |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 |
| Material: | Steel | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Usage: | Construction Hoist |
| Color: | Optional | ||
| High Light: | vertical plate clamps,lift clamps |
||

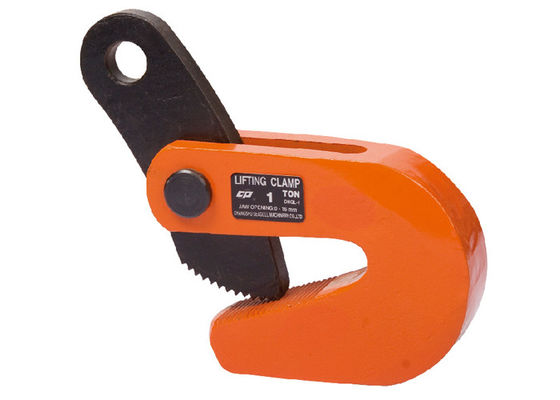

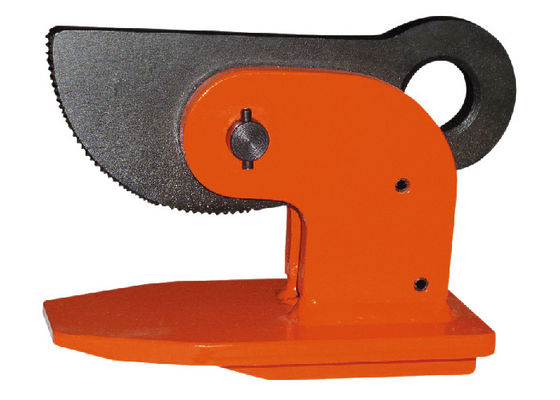

A tool for lifting plate type items. Usually used for clamping and lifting of steel plate.
| Model | DHQ-0.8 | DHQ-1 | DHQ-1.6 | DHQ-2 | DHQ-3 | DHQ-4 | DHQ-5 | DHQ-6 | DHQ-6(B) | DHQ-8 | DHQ-10 |
| Rated capacity(t) | 0.8 | 1.0 | 1.6 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 6.0 | 8.0 | 10.0 |
| Test load | 1.6 | 2.0 | 3.2 | 4.0 | 6.0 | 8.0 | 10.0 | 12.0 | 12.0 | 16.0 | 20.0 |
| Jaw opening(mm) | 0-25 | 0-30 | 0-30 | 0-40 | 0-45 | 0-50 | 0-55 | 0-65 | 0-130 | 0-100 | 0-125 |
| Net Weight(mm) | 2.5 | 3.5 | 4.0 | 5.0 | 6.0 | 6.5 | 7.5 | 10.5 | 22.0 | 22.0 | 33.0 |
| Model | DHQA-1 | DHQA-2 | DHQA-3 | DHQA-5 | DHQA-6 | DHQA-10 |
| Rated capacity(t) | 1 | 2 | 3 | 5 | 6 | 10 |
| Test load | 2 | 4 | 6 | 10 | 12 | 20 |
| Jaw opening(mm) | 0-30 | 0-50 | 0-60 | 10-80 | 10-100 | 20-120 |
| Net Weight(mm) | 4 | 5.5 | 8 | 11.5 | 14.5 | 30 |
| Model | DHQL-0.8 | DHQL-1 | DHQL-1.6 | DHQL-2.5 | DHQL-2.5(B) | DHQL-3 | DHQL-3(B) | DHQL-5 | DHQL-5(B) |
| Rated capacity(t) | 0.8 | 1.0 | 1.6 | 2.5 | 2.5 | 3.0 | 3.0 | 5.0 | 5.0 |
| Test load | 1.6 | 2.0 | 3.2 | 5.0 | 5.0 | 6.0 | 6.0 | 10.0 | 10.0 |
| Jaw opening(mm) | 0-15 | 0-20 | 0-25 | 0-30 | 25-50 | 0-40 | 30-60 | 0-50 | 50-80 |
| Net Weight(mm) | 2 | 4 | 6.5 | 11 | 11 | 12.5 | 12.5 | 19 | 20 |
| Model | DHQK-3 | DHQK-4.5 | DHQK-6 | DHQK-8 | DHQK-15 |
| Rated capacity(t) | 3.0 | 4.5 | 6.0 | 8.0 | 15.0 |
| Test load | 6.0 | 9.0 | 12.0 | 16.0 | 30.0 |
| Jaw opening(mm) | 0-180 | 0-240 | 0-240 | 0-240 | 0-240 |
| Net Weight(mm) | 19 | 26 | 40 | 51 | 72 |
| Model | DHQP-1.5 | DHQP-3 | DHQP-5 |
| Rated capacity(t) | 1.5 | 3.0 | 5.0 |
| Test load | 3.0 | 6.0 | 10.0 |
| Jaw opening(mm) | 0-50 | 0-50 | 0-60 |
| Net Weight(mm) | 4.3 | 6 | 12 |
Steel plate clamp type has a lot of, the applicable scope is very wide ,for example, shipyard , installation of steel structure , steel market, machining, cutting steel, steel plate handling, etc.
Steel plate clamp light weight, simple structure, easy to use. These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.
These products made from low carbon alloy steel forging quality. Ensure the impact resistant capacity, bearing capacity, ductility, and elongation of such tools.
Tags: plate clamp , steel clamp
