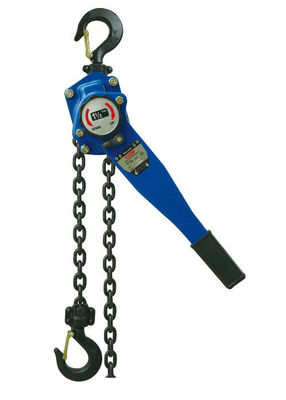

3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty

3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty

    • 3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty
    • 3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty
    • 3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty
    • 3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty
  • 3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: SEAGULL
    Certification: CE&GS
    Model Number: HSH-CB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Price: Negotiable
    Packaging Details: package for manual lever block with high quality:carton and pallet.
    Delivery Time: 50 days
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Condition: New Usage: Construction Hoist
    Power Source: Lever Sling Type: Chain
    Maximum Lifting Weight: 1.5 TON Maximum Lifting Height: 3M
    Warranty: One Year Body Material: Alloy Steel

    3 M 1.5 Ton Lever Block Chain Hoist Lever Block With Long Working Life

    Features:
    *Guide slots guard against jamming and slipping
    *Roller and ball bearing construction reduces friction
    *Automatic double pawl-braking system
    *Hardened swivel latch hooks
    *Self-locking lever controls the pulling direction
    *360°handle rotation and pivot&swivel top hook for easy rigging
    *All-steel construction for extreme durability
    *Hook is assembled with high-strength locking fasteners
    *Rubber handle grip on lever for comfort and anti-skidding
    *One-hand operation with the best free chaining available


    3 M 1.5 Ton Lever Block Chain Lever Hoist Long Working Life One Year Warranty

    HSH-CB-LEVER BLOCKS
    Model

    HSH-7.5CB HSH-15CB HSH-30CB HSH-60CB
    Rated load(T)

    0.75 1.5 3 6
    Test load(T)

    0.95 1.875 3.75 7.5
    Standard lift(m)

    1.5 1.5 1.5 1.5
    Min. distance between two hooks(mm)

    290   477 550
    Efforts required at capacity(N)

    196 220 325 343
    No. of load chains

    1 1 1 2
    Diameter of load chain(mm)

    6x18 8x24 10x30 10x30
    Dimensions(mm)





    A 148 174 193 193
    B 135 160 209 263
    C 295 423 423 423
    H 290 385 477 550
    Extra weight per meter of extra lift(kg) 0.82 1.43 2.21 4.42
    Net weight(kg)

    7 11 20 30
