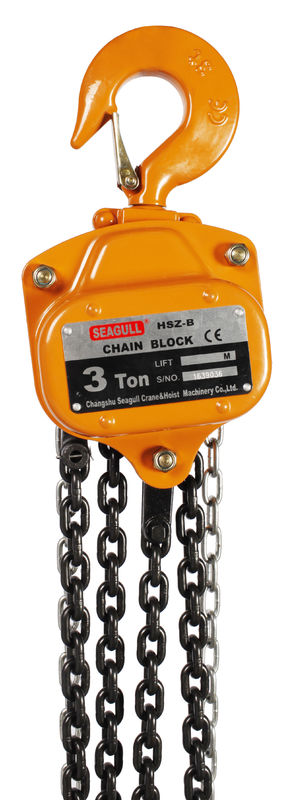

Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist

Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist

  • Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist
  • Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist
  • Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist
  • Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist
Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist
Product Details:
Place of Origin: China,Jiangsu
Brand Name: SEAGULL
Certification: CE GS
Model Number: HSZ-B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: High quality double wall carton and steel pallets outside.
Delivery Time: 30 days
Supply Ability: 10000
Contact Now
Detailed Product Description
Material: Alloy Steel Condition: New
Usage: Construction Hoist Color: Optional
Warranty: 1 Year
Highlight:

hand chain hoist

,

chain block hoist

Export Standard 3 T / 3 TON / 3 TONNE Manual Chain Block , Chain Hoist



features:


1) Capacity from 0.5T to 30T

2) Have certificate of CE

3) Got certificate of ISO9001

4) Automatic double-pawl braking system.

5) Asbests-free brake discs.

6) Drop forged hooks and hook holders to ensure superior quallity and safety

7) More thickness of sheet cover,gear cover and side plates for good quality.

8)The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one





Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist 0

Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist 1



HSZ-B CHAIN BLOCK
Model HSZ-0.5B HSZ-1B HSZ-1.5B HSZ-2B HSZ-3B HSZ-5B HSZ-10B HSZ-15B HSZ-20B HSZ-30B
Rated load(T) 0.5 1 1.5 2 3 5 10 15 20 30
Standard lift(m) 2.5 2.5 2.5 2.5 3 5 3 3 3 3
Test load(T) 0.75 1.5 2.25 3 4.5 7.5 12.5 18.75 25 37.5

Efforts required

at capacity(N)

262 324 395 330 402 430 438 447 438 442

Diameter at

load chain(mm)

5 6 7.1 6 7.1 10 10 10 10 10
NO. of load chains 1 1 1 2 2 2 4 6 8 10
Dimensions(mm) A 127 156 180 156 180 230 410 410 645 710
B 115 131 142 131 124 171 171 204 215 398
C 288 334 415 459 536 660 738 1028 1002 1050
Net weight(kg) 7 10.5 15.5 16 23 39 69 95 155 237
Extra weight per meter of lift(kg) 1.5 1.8 2 2.7 3.2 5.3 9.8 14.2 19.6 23.9











































Alloy Steel 3 T / 3 Ton Manual Chain Block , Standard Construction Chain Hoist 2
