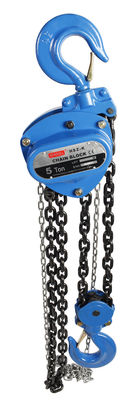

Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE

Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE

  • Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
  • Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
  • Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
  • Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: SEAGULL or OEM pointed brand
Certification: CE GS
Model Number: HSZ-K
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Higher quality double wall carton+steel pallet.
Delivery Time: Within 30 days after confirmation for HSZ-K type Chain Block 30T
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Condition: New Usage: Construction Hoist
Power Source: Manual Sling Type: Chain
Maximum Lifting Weight: 6T Maximum Lifting Height: 18m
Lift Speed: Manual Warranty: One Year
Colour: As Your Requirements(Orange,red,yellow,blue,etc) Sample: Available
Body Material: Alloy Steel Chain Material: Chain Material
Hook Material: Forged&heat Treatment Quality Test: 100% 1.5times Tested One By One Before Packages
High Light:

hand chain hoist

,

chain block hoist

Most Popular 5 ton 6 m Chain Pulley Block Manual Chain Block Chain Hoist
(1) Have certificate of CE
(2) Got certificate of ISO9001
(3) Capacity from 0.25T to 50T
(4) Automatic double-pawl braking system
(5) More thickness of sheet cover,gear cover and side plates for good quality.
(6) Asbests-free brake discs
(7) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.
(8) Drop forged hooks and hook holders to ensure superior quallity and safety.
Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE 0
Alloy Steel Manual Chain Block Hoist , 6 M Chain Lifting Pulley Block 5 Ton CE 1


HSZ-K CHAIN BLOCKS 0.5Ton-30Ton
Model HAS-0.5K HSZ-1K HSZ-1.5K HSZ-2K HSZ-3K HSZ-5K HSZ-10K HSZ-20K HSZ-30K
Rated load(T) 0.5 1 1.5 2 3 5 10 20 30
Standard lift(m) 2.5 2.5 2.5 2.5 3 3 3 3 3
Test load(T) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 37.5
Efforts required at capacity(N) 262 324 395 330 402 430 438 438 442
Diameter of load chain(mm) 5 6 7.1 6 7.1 10 10 10 10
No. of load chains 1 1 1 2 2 2 4 8 10
Dimensions (mm) A
B
C
D
120
116
285
28
147
136
332
32
181
147
410
38
158
136
470
40
202
148
550
44
228
178
640
50
373
178
737
64
638
195
1022
82
703
397
1050
82
Net weight (kg) 7 10 15 17 23 38 68 160 235
Extra weight per meter of extra lift(kg) 1.5 1.8 2 2.7 3.2 5.3 9.8 19.6 23.9

ensions (mm) A
B
C
Extra weight
