2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding

2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding

    • 2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding
    • 2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding
    • 2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding
  • 2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: SEAGULL or OEM pointed brand
    Certification: CE GS
    Model Number: HSZ-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: Negotiable
    Packaging Details: Higher quality double wall carton+steel pallet.
    Delivery Time: Within 30 days after confirmation for HSZ-K type Chain Block 30T
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Condition: New Usage: Construction Hoist
    Power Source: Manual Sling Type: Chain
    Maximum Lifting Weight: 30T Maximum Lifting Height: 18m
    Lift Speed: Manual Warranty: One Year
    Colour: As Your Requirements(Orange,red,yellow,blue,etc) Sample: Available
    Chain Material: G80 Oil Black Or Zn-plating Hook Material: Forged&heat Treatment
    Quality Test: 100% 1.5times Tested One By One Before Packages

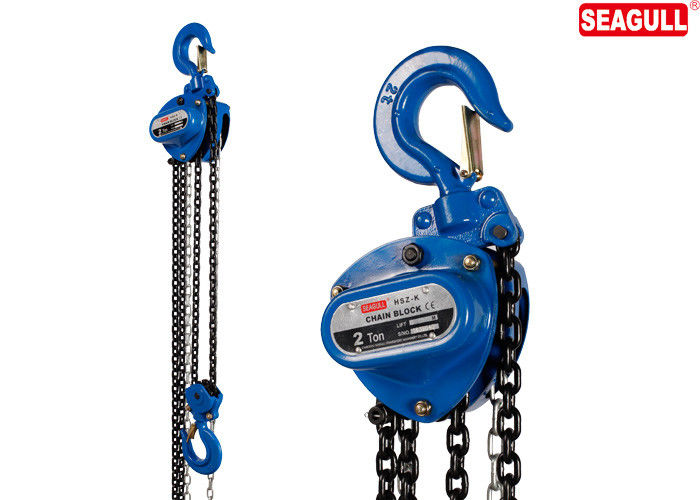

    2 ton HSZ-K Alloy Steel manual Chain block CE GS approved for shipbuilding

    *Capacity from 0.25T to 50T;
    *Got certificate of ISO9001;
    *Have certificate of CE;
    *Automatic double-pawl braking system;
    *Asbests-free brake discs ;
    *Drop forged hooks and hook holders to ensure superior quallity and safety;

    *More thickness of sheet cover,gear cover and side plates for good quality;
    *The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.

    2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding




    HSZ-K CHAIN BLOCKS 0.5Ton-30Ton
    Model HAS-0.5K HSZ-1K HSZ-1.5K HSZ-2K HSZ-3K HSZ-5K HSZ-10K HSZ-20K HSZ-30K
    Rated load(T) 0.5 1 1.5 2 3 5 10 20 30
    Standard lift(m) 2.5 2.5 2.5 2.5 3 3 3 3 3
    Test load(T) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 37.5
    Efforts required at capacity(N) 262 324 395 330 402 430 438 438 442
    Diameter of load chain(mm) 5 6 7.1 6 7.1 10 10 10 10
    No. of load chains 1 1 1 2 2 2 4 8 10

    Dimensions (mm) A
    B
    C
    D

    120
    116
    285
    28

    147
    136
    332
    32

    181
    147
    410
    38

    158
    136
    470
    40

    202
    148
    550
    44

    228
    178
    640
    50

    373
    178
    737
    64

    638
    195
    1022
    82

    703
    397
    1050
    82

    Net weight (kg) 7 10 15 17 23 38 68 160 235
    Extra weight per meter of extra lift(kg) 1.5 1.8 2 2.7 3.2 5.3 9.8 19.6 23.9


    2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding


    packing
    2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding

    production line
    2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding

    certificate

    2 Ton Alloy Steel Manual Chain Block Hoist CE Approval For Shipbuilding
    ensions (mm) A
    B
    C

    Exta weight
