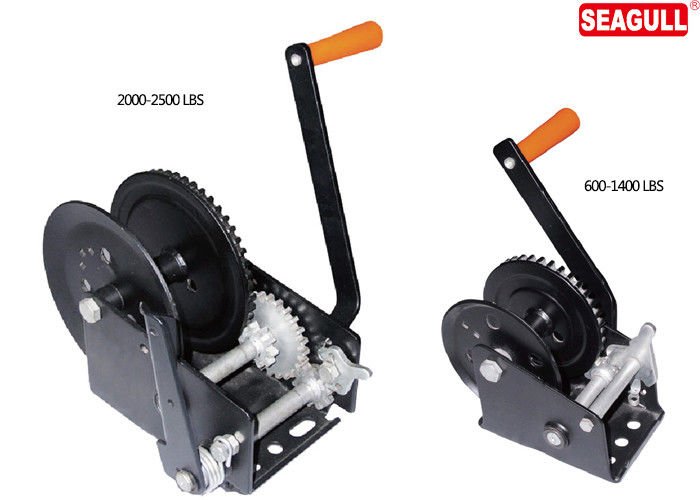

Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed

Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed

    • Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed
    • Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed
  • Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Seagull
    Certification: CE GS
    Model Number: JC-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: Nogotiable
    Packaging Details: High quality double wall carton and steel pallets outside.
    Delivery Time: 35-45 days after confirm the sales contract
    Payment Terms: L/C, T/T
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Power Source: Hand Application: Boat
    Quality Test: 100% Tested Before Delivery

    600-2500 LBS Steel Manual Hand Winch Windlass Lifting winch for all purpose



    Product Description



    1. its small, light,easy to use.



     2. its a kind of light and handy flexible drawing tools, Suitable for automobile, ship mooring, trees,etc.'s drawing the homework.







    Windlass Hand Lifting Winch Steel Manual Hand Winch With Single Double Speed

    Technical Parameters



    JC-B HAND WINCH
    Model 600 lb 800 lb 1000 lb 1200 lb 1400 lb 2000 lb 2500 lb
    Rated capacity(lb) 600 800 1000 1200 1400 2000 2500
    Test load(Kn) 4.1 5.4 6.8 8.2 9.5 13.6 17
    Single Speed / Double Speed Single Single Single Single Single Double Double
    Transmission ratio 2.9:1 3.7:1 4.2:1 4.2:1 4.2:1 10.35:1/4.5:1 11.5:1/5:1
    Hand operated strength(N) 70 75 85 100 120 150 160
    Dimensions(mm) A Φ21 Φ21 Φ21 Φ21 Φ21 Φ27 Φ27
    B Φ116 Φ116 Φ135 Φ135 Φ135 Φ150 Φ165
    C 51 51 51 51 51 65 65
    D 119 119 119 119 119 174 174
    E Φ25 Φ25 Φ25 Φ25 Φ25 Φ25 Φ25
    F 228 228 228 228 228 281 281
    G 91 91 91 91 91 91 91
    H 138 138 156 156 156 182 191
    J 165 165 184 184 184 250 256
    R 180 180 180 180 180 251 251
    Net weight(no wire rope)(kg) 2.4 2.5 2.8 2.8 2.8 5.9 6.4



     Product instructions



    The rated capacity means the max capacity when the winch to be winded the first layer of wire rope , and proportion decreased by adding numbers of layer of wire rope accordingly.
